Fully - automatic paint dispenser machines , color mixing equipment
Brief introduction

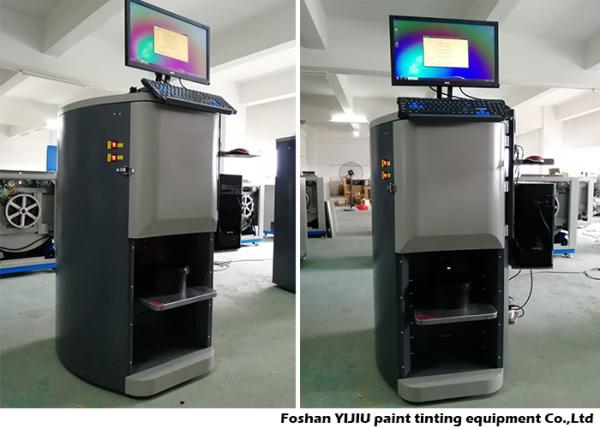

YJ-1A-16D automatic dispenser have 16 stianless steel canisters,control by PC or computer. It can be put PC,or LCD displayer and keyboard.There is a USB cable to connect the computer and the dispenser machine. The dispenser machine is driven by our own software. We can also make our software to work with customer's color software by the way of reading its formula file.
Features
- Ergonomic and concise design for easy operation. Piston pump associated with every canister ensure high accuracy, and it's compatible with water-based colorants. Automatic stirring prevent colorant drying which blocks the nozzle. Modularization of the pumps and the canisters to allow for independent disassembly, repair and replacement.
- Powerful software for input, search, modification and removal of color formulas, as well as calibration, timed washing and low level warnings. Driver software use the same Flink.dat file as CPS/Hero/Lenteq,and Formula.txt file as TECMEC,it’s
compatible with worldwide major color software.
Technical Data
| Dispensing | Sequential |
| Maximal Dispensing at one time | 50 ml |
| Flow Rate | 0.25L |
| Accuracy | 1/384 Y or 0.077 ml |
| Canister Capacity | (stainless cans)16 canisters in 2.3L |
| Net Weight | 190.7KG |
| Gross Weight | 224KG |
| Machine Size | 805(L)*710(W)*1230(H) MM |
| Packing Size | 846(L)*758(W)*1398(H) MM |

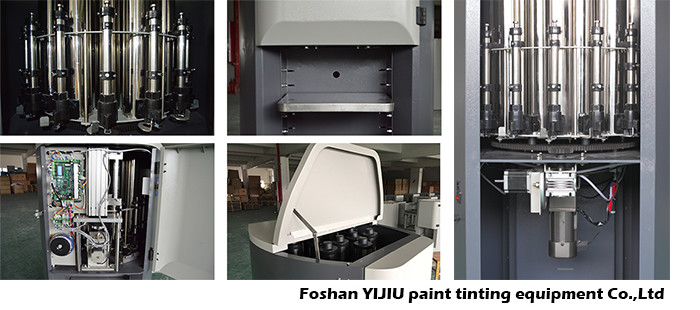

Sample show
1. The stainless steel canisters is durable, corrosion resistance.
2. There's can sensor to detect the container.
3. Facilitate easy maintenance of the machine by installing the mainboard in the front.
4. Top cover can be open easily, convient to add colorants.
Automatic dispenser machine FAQ
1. How many canisters?
12 , 14 , 16 , 24 caniters for option.
2. Can I use our own color software?
- YIJIU software can read Flink.dat file ( which is the formula file created by CPS / Hero / Lenteq ) and dispense according to the data of Flink.dat file.
- If your color software create other formula file rather than the Flink.dat file, you can send to us for checking if we can make our YIJIU software to read it.
- If you have no color software, you can manage the formula data in YIJIU software directly.
3. Which the dispensing accuracy?
1 / 384Y or 0.077ml
4. What' the dispensing speed?
0.25L per min
5. Which is the maximum weight , volume and sizes of pails can be placed into the dispenser machine table.
The maximum diameter of the bottom pail:340mm
The maximum height of the pail: 490mm
within above size of diameter and height will be OK.
Our Service
- All our machines are tested before shipment.
- All machines are at its optimal state when shipped.
- Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.
- You can send personnel to our factory for free training on the machine.
- You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
