5 gallons manual paint mixer , gyroscopic blending machine for paint colorant , ink , coating , nail polish
Brief Introduction
The YIJIU manual clamping gyroscopic mixer YJ-2M-01 is works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed . It is suitble to big package and high viscosity chemical liquids mixing .
Application:
Chemical liquids : paint colorant , coating , ink , glue , etc.
Technical Data
| Time of Mixing | 15s-9min45s |
| Size of Mixing can | 1~20 L |
| Load of Mixing can | 1~35 KG |
| Speed of Mixing | 80r/min~ 150 r/min |
| Height of Mixing can | 80~380 mm |

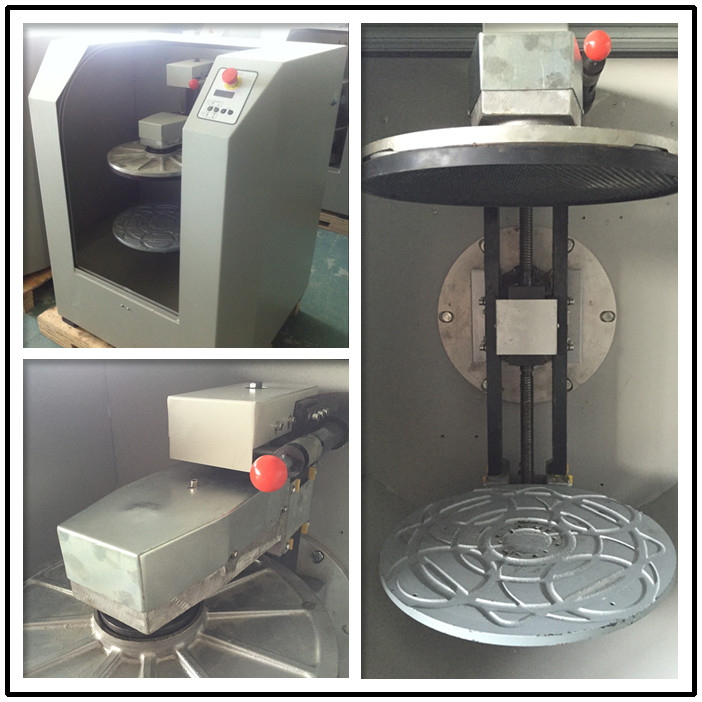

Sample show
1. Counterclockwise rotate then clockwise rotate, ensure more even mixing.
2. Rotation and revolution run simultaneously.
3. Electrode tube indicator,more convenient and clear
4. Clamping and loosening the mixing can manually.
5. Lower clamping plate is movable .
Mixer machine FAQ
1. What's the max mixing ability?
20L, 35 kg, 5 US gallon
2. Can it be used for other liquid except paint?
Yes, any liquid chemicals
3. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.
4.Can it adjust time and speed?
Yes!
Time: 0-5 mins
Speed: two levels, low speed for big cans and high speed for small cans.
5. What's your after sales service provided?
One year warranty and free spare parts provided
6. What's the weight and size?
| Machine Size | 780(l)*800(w)*1015(h)mm |
| Packing Size | 810(l)*830(w)*1150(h)mm |
| Net Weight | 180KG |
| Gross Weight | 240KG |
Other Products
- Automatic paint tinting machine with 12 or 16 canisters YJ-1A-16D
- Manual paint dispenser with 12 or 16 canisters YJ-1M
- Automatic clamping gyro mixer YJ-2A-02
- Automatic clamping shaker YJ-2
Company Profile
Foshan YiJiu Paint Tinting Equipment Co., Ltd. was established in 2010. locates in Shunde ,China. which is widely famous for its developed manufacturing business. We are specialized in paint tinting and mixing equipments, collect R&D, manufacturing, sales and after sales service together.
In line with reliable, sincere, reciprocal, mutually beneficial, YiJiu Co. have been and will keep provides high quality, high accuracy, high cost-effective paint equipments to all our customers. Thanks to the know-how of our technicians and the well trained administrative staffs. we are able to offer considerate and responsible service.
We have wide connections with wholesalers and retailers all over the world. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
