High speed paint colour mixer machines, automatic clamping paint mixing machine
Brief Introduction
The YIJIU automatic gyroscopic mixer YJ-2A-02 is works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed . It is suitble to big package and high viscosity chemical liquids mixing .
Application:
Chemical liquids : paint colorant , coating , ink , glue , etc.
Features
1. Rotation and revolution go simultaneously during mixing, which solves the problem of uneven and long time mixing caused by single direction rotation.
2. Clamping strength is adjustable, which meets the needs of different size canisters, and also ensure the stability and no deformation force.
3. LCD displays in Chinese or English; the failure testing program can judge the fault easily for you.
4. Rotating speed is adjustable to meet the needs of different mixing materials.
5. The data of inverter is automatically set, leaving you no trouble when replace inverter.
6. Lower clamping plate is movable, easy to put the mixing can on or off.
Technical Data
| Time of Mixing | 15 seconds~9 mins 45 seconds |
| Size of Mixing can | 1~20L |
| Load of Mixing can | 1~35KG |
| Speed of Mixing can | Adjustable (80 r/min--150 r/min) |
| Suitable can height | 80~400mm |
| Suitable can diameter | 320mm |
| Net Weight | 182KG |
| Gross Weight | 214KG |
| Machine Size | 800(l)*745(w)*1010(h)mm |
| Packing Size | 780(l)*850(w)*1130(h)mm |

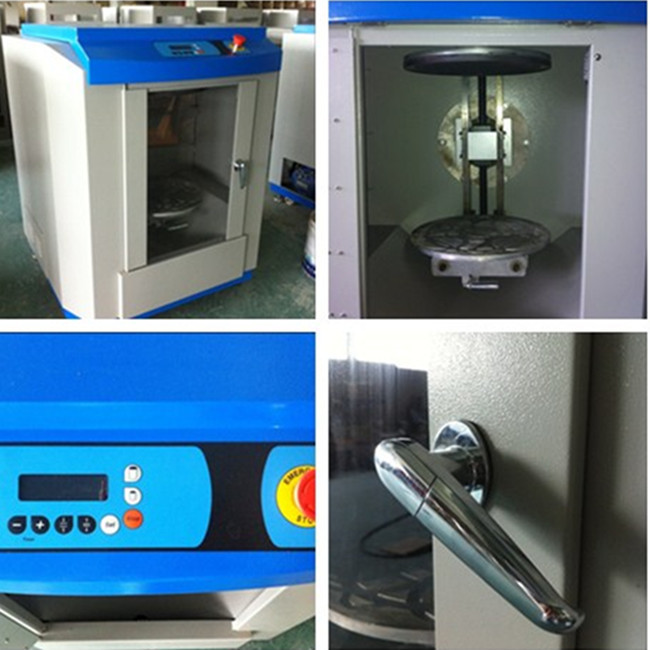

Sample Show

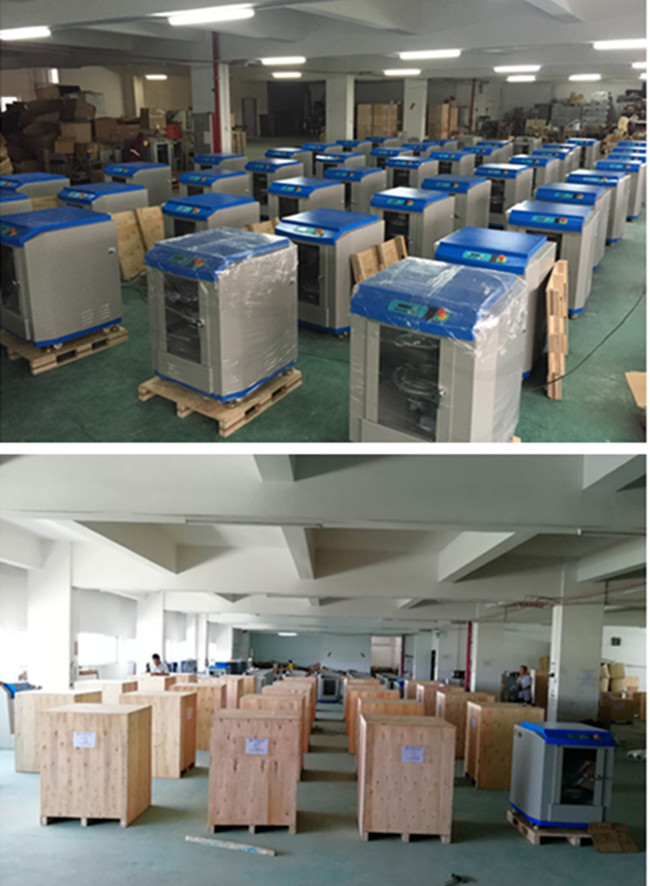

Packing
Wrap with plastic film first and then in plywood case
Mixer machine FAQ
1. What's the max mixing ability?
20L, 35 kg, 5 US gallon
2. Can it be used for other liquid except paint?
yes, any liquid chemicals
3. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.
4.Can it adjust time and speed?
yes,
Time: 15S , 30S , 45S...9mins 45s
Speed: two levels, low speed for big cans and high speed for small cans.
5. What's your after sales service provided?
one year warranty and free spare parts provided
6. What's the packing size for shipping cost?
Gross weight: 214kg, 780(L)*850(W)*1130(H)mm
